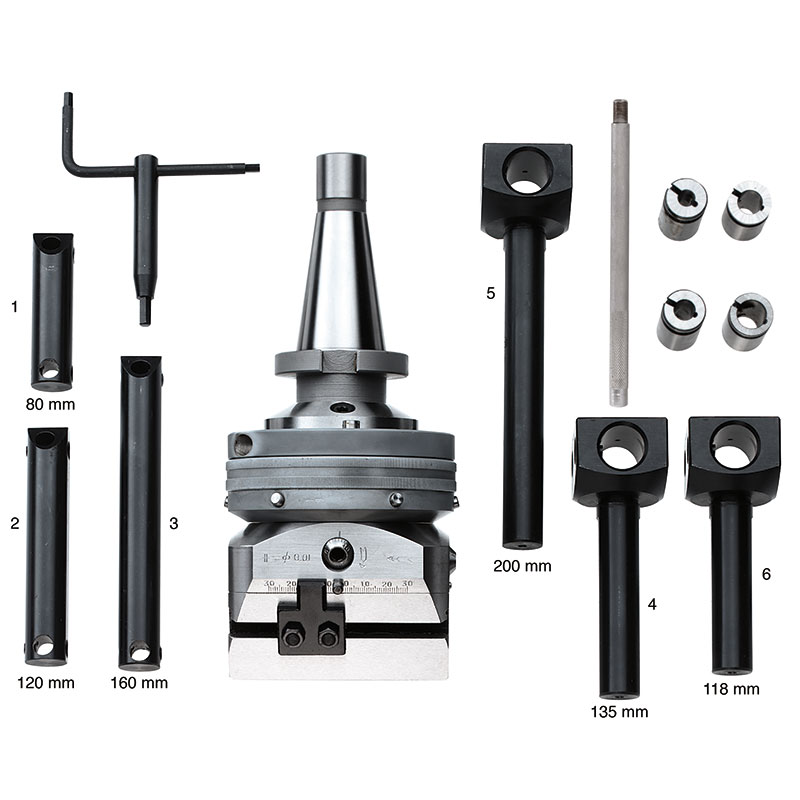

AUTOMATIC PRECISION BORING HEAD
Art. T021/030CM3
TO SLIGHTLY CORRECT THE AXIALITY AND DIAMETER OF THE HOLES. IT CAN WORK AUTOMATICALLY AND MANUALLY.
| Max facing and boring ø |
Max stroke of slide |
Fine feed per graduation |
Manual feed per revolution |
Self acting feed per revolution |
ø of tool post holes in head |
Max ø of head |
Height of head without shank - (H) |
Weight of head without shank |
Length of sliding block |
Width of sliding block |
Collets hole |
Accessories |
Extension hole for tool holder |
Shank |
Gross weight |
EAN Code |
| 150 mm |
±15 mm |
0,005 mm |
2 mm |
0,02-0,04-0,06 0,08-0,10-0,12 mm |
18 mm |
90 mm |
87,5 mm |
2,9 kg |
75 (L) mm |
70 (B) mm |
4 - 8 - 12 ø mm |
1 - 2 - 6 |
Ø 6 mm |
ISO40 - DIN2080 |
8,45 kg |
8012667002909 |
| 150 mm |
±15 mm |
0,005 mm |
2 mm |
0,02-0,04-0,06 0,08-0,10-0,12 mm |
18 mm |
90 mm |
87,5 mm |
2,9 kg |
75 (L) mm |
70 (B) mm |
4 - 8 - 12 ø mm |
1 - 2 - 6 |
Ø 6 mm |
CM3/MT3 - DIN 228A |
7,46 kg |
8012667196523 |
| 350 mm |
±25 mm |
0,005 mm |
3 mm |
0,03-0,06-0,09 0,12-0,15-0,18 mm |
22 mm |
120 mm |
118 mm |
6,1 kg |
105 (L) mm |
90 (B) mm |
8 - 10 - 12 - 14 ø mm |
1 - 2 - 3 - 4 - 5 |
Ø 10 mm |
ISO40 - DIN2080 |
16,00 kg |
410x295x145 h mm |
8012667002916 |
| 450 mm |
±50 mm |
0,005 mm |
3 mm |
0,03-0,06-0,09 0,12-0,15-0,18 mm |
22 mm |
168 mm |
118 mm |
7,8 kg |
160 (L) mm |
90 (B) mm |
8 - 10 - 12 - 14 ø mm |
1 - 2 - 3 - 4 - 5 |
Ø 10 mm |
ISO40 - DIN2080 |
17,56 kg |
8012667002923 |
| 450 mm |
±50 mm |
0,005 mm |
3 mm |
0,03-0,06-0,09 0,12-0,15-0,18 mm |
22 mm |
168 mm |
118 mm |
7,8 kg |
160 (L) mm |
90 (B) mm |
8 - 10 - 12 - 14 ø mm |
1 - 2 - 3 - 4 - 5 |
Ø 10 mm |
ISO50 - DIN2080 |
19,60 kg |
410 x 310 x 140 h mm |
8012667002930 |
