PRECISION SELF-CENTERING CHUCK 3 + 3 + 3 JAWS

news
Art. M075A/400

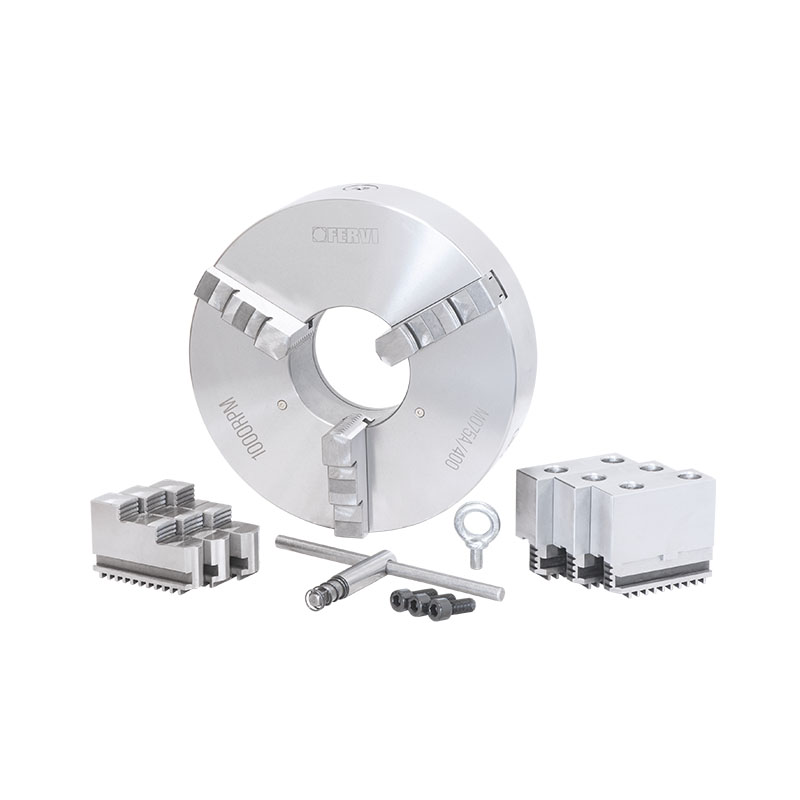

SINGLE GUIDE. INTEGRAL JAWS, CONCENTRIC CLAMPING, EQUIPPED WITH: 1 SERIES CONSISTING OF 3 INTERNAL JAWS, 1 SERIES CONSISTING OF 3 EXTERNAL JAWS AND TIGHTENING KEY AND 1 SERIES CONSISTING OF 3 SOLID SOFT JAWS. METAL'S REAR COVER FOR Ø250MM, Ø320MM AND Ø400MM CHUCKS
Where to buy
add to favorites
Box
Wooden Box
Cast Iron
Lathe
D1 D2 D3 H1 H h z-d Spanner square A - A1 B - B1 C - C1 Net weight Gross weight Packaging dimensions EAN Code
55 mm 66 mm 16 mm 66 mm 50 mm 4 mm 3-M6 mm 8 mm 2 - 22 mm 25 - 70 mm 22 - 63 mm 1,9 kg 2,10 kg 160x160x170h mm 8012667397692
72 mm 84 mm 22 mm 74,5 mm 55 mm 4 mm 3-M8 mm 8 mm 2 - 30 mm 30 - 90 mm 30 - 80 mm 3,2 kg 3,70 kg 160x160x190hmm 8012667397708
95 mm 108 mm 30 mm 84 mm 58 mm 4 mm 3-M8 mm 10 mm 2,5 - 40 mm 38 - 125 mm 38 - 110 mm 5 kg 5,80 kg 185x185x200h mm 8012667397715
130 mm 142 mm 45 mm 95 mm 65 mm 5 mm 3-M8 mm 10 mm 3 - 55 mm 50 - 160 mm 55 - 145 mm 8,8 kg 1,86 kg 8012667397722
165 mm 180 mm 65 mm 109 mm 75 mm 6 mm 3-M10 mm 12 mm 4 - 85 mm 65 - 200 mm 65 - 200 mm 15,5 kg 18,70 kg 275x275x255h mm 8012667397739
206 mm 226 mm 80 mm 120 mm 80 mm 5 mm 3-M12 mm 12 mm 6 - 110 mm 80 - 250 mm 90 - 250 mm 25,7 kg 25,70 kg 320x320x280h mm 8012667397746
270 mm 290 mm 100 mm 143,5 mm 95 mm 11 mm 3-M16 mm 13 mm 11,5 - 145 mm 95 - 320 mm 110 - 320 mm 47,5 kg 64,00 kg 440x470x300h mm 8012667397753
340 mm 368 mm 145 mm 155 mm 101,5 mm 7 mm 3-M16 mm 14 mm 15 - 210 mm 120 - 400 mm 120 - 400 mm 71 kg 95,00 kg 460x490x245h mm 8012667397760
Art. €
M075A/080 249,00
M075A/100 274,00
M075A/125 295,00
M075A/160 380,00
M075A/200 543,00
M075A/250 660,00
M075A/320 1.120,00
M075A/400 1.690,00
