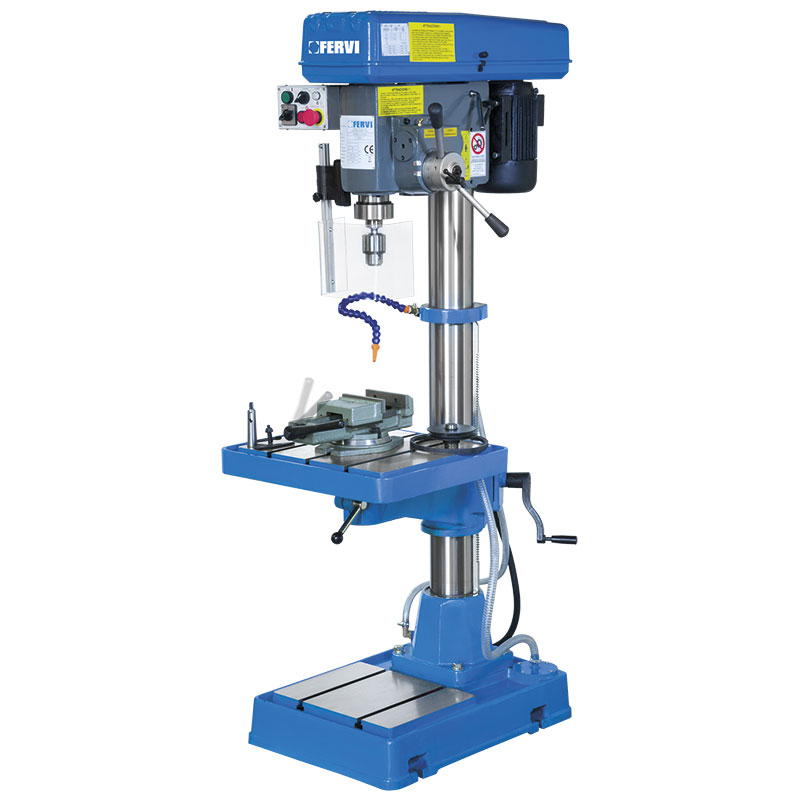

FLOOR DRILL PRESS WITH DRIVE BELT

Art. T032DA
WITH AUTOFEE, COOLANT SYSTEM, PARTIALLY ROTATING TABLE, WITH 125MM VICE.
Max drilling capacity on cast iron with pre-drilling hole
Ø 31,75 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 31,75 mm
Continuous drilling capacity
Ø 25 mm
Spindle taper
MT 3
Chuck sizes
1 ÷ 16 B18
Spindle speed
(8) 160 ÷ 2200 rpm
Spindle travel
130 mm
Column
Ø 115 mm
Feed range
0,1- 0,16- 0,26 mm/rev
Distance between spindle axis and column
223 mm
Distance between spindle nose and table
696 mm
Distance between spindle nose and base
1135 mm
Table dimensions
400 x 470 mm
Travel of table
510 mm
Slot
14 mm
Base dimensions
400 x 310 mm
Motor
400 V 50 Hz 0,85 kW / 1,1 kW
Cooling pump
400 V 50 Hz 40 W
Overall sizes
900 x 545 x 1765 mm
Net weight
340 kg
Packaging dimensions
950 x 570 x 1920 h mm
Gross weight
360,50 kg
EAN Code
8012667226855
