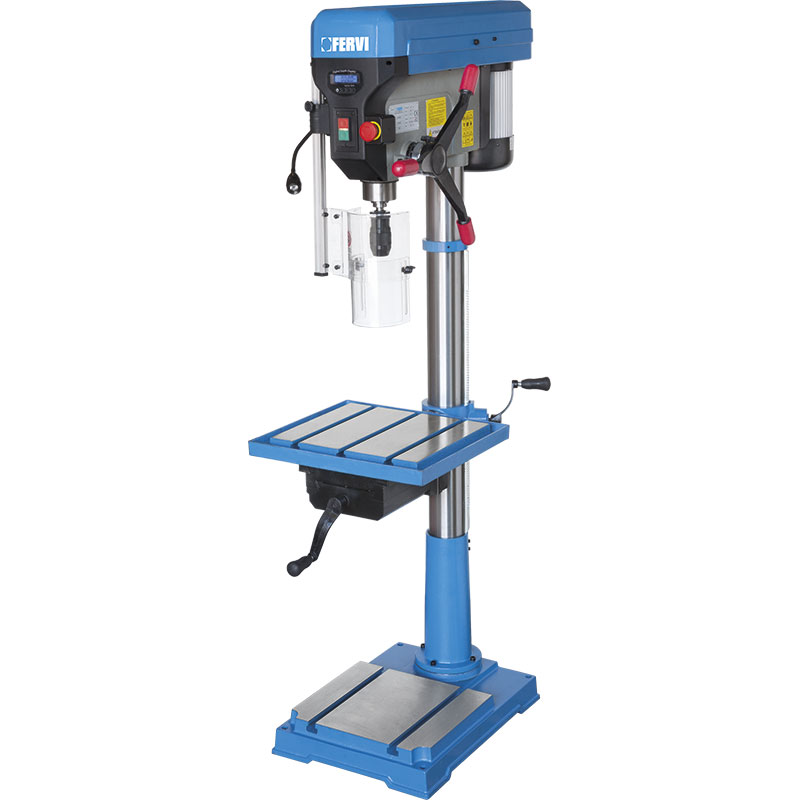

FLOOR DRILL PRESS WITH DRIVE BELT

Art. 0252/230V
NEW BELT TENSION DEVICE, REVERSIBLE TABLE WITH INTEGRATED SLIDING VICE , DRILLING DEPTH READOUT, LED LIGHT INCLUDED. ELECTRICAL SYSTEM WITH SEPARATE 24V CIRCUIT FOR ON-BOARD MACHINE CONTROLS.
Max drilling capacity on cast iron with pre-drilling hole
Ø 32 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 28 mm
Continuous drilling capacity
Ø 20 mm
Spindle taper
4
Chuck sizes
1 - 16 mm B18
Spindle speed
(12) 150 ÷ 2450 rpm
Spindle travel
120 mm
Quill
ø 62 mm
Column
ø 92 mm
Height
1720 mm
Distance chuck-column
255 mm
Distance between spindle nose and table
700 mm
Table dimensions
460 x 425 mm
Distance between spindle nose and base
1220 mm
Slot
14 mm
Vice
210 x 165 mm
Motor
230 V 50 Hz 1,5 kW
Net weight
135 kg
Gross weight
158,00 kg
EAN Code
8012667254223
Packaging dimensions
1430x660x330 h mm
