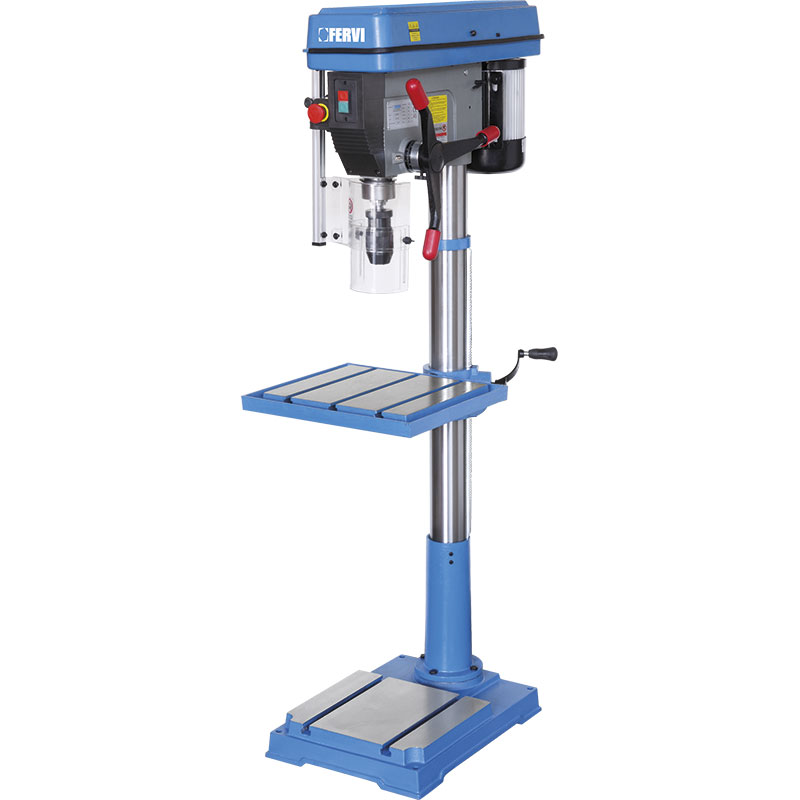

FLOOR DRILL PRESS WITH DRIVE BELT

Art. 0754/230V
TILTING TABLE. ELECTRICAL SYSTEM WITH SEPARATE 24V CIRCUIT FOR ON-BOARD MACHINE CONTROLS.
Max drilling capacity on cast iron with pre-drilling hole
Ø 32 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 28 mm
Continuous drilling capacity
Ø 20 mm
Spindle taper
CM 4
Chuck sizes
5 - 20 mm B22
Spindle speed
(12) 150 ÷ 2450 rpm
Spindle travel
120 mm
Quill
Ø 62 mm
Column
Ø 92 mm
Height
1710 mm
Distance column-chuck
260 mm
Table dimensions
460 x 425 mm
Slot
14 mm
Tilting table
± 45°
Motor
230 V 50 Hz 1,5 kW
Net weight
125 kg
Packaging dimensions
1430x660x330 h mm
Gross weight
132,00 kg
EAN Code
8012667197551
