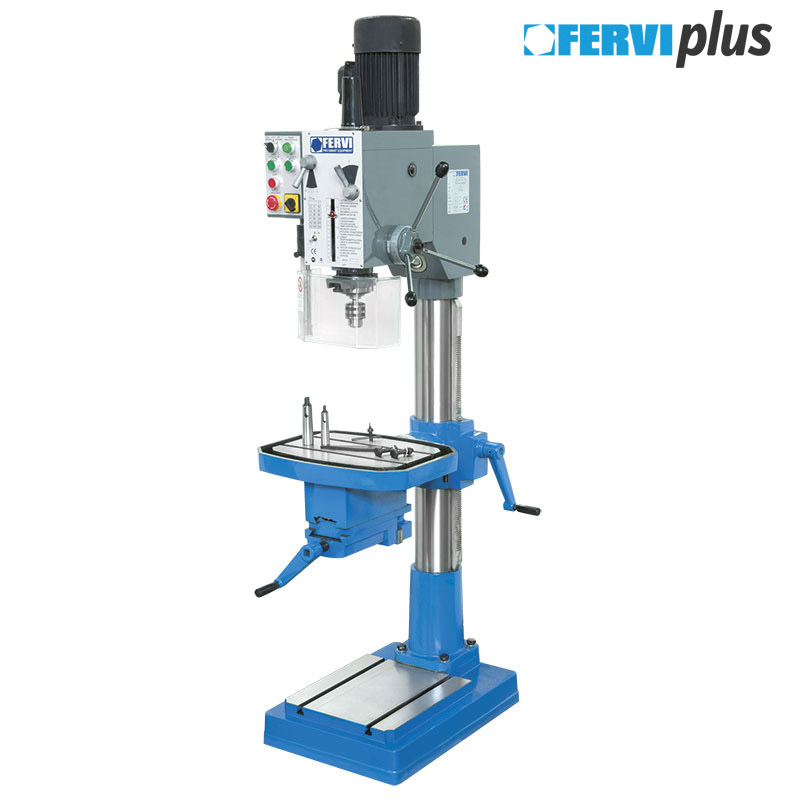

GEARED DRILLING MACHINE

Art. T062
REVERSIBLE, TABLE REVERSIBLE WITH 145MM VICE, EQUIPPED WITH LIGHT.
Max drilling capacity on cast iron with pre-drilling hole
Ø 40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 35 mm
Continuous drilling capacity
Ø 30 mm
Spindle taper
MT 4
Chuck sizes
1 ÷ 16 mm B18
Spindle speed
(12 ) 75 ÷ 3200 rpm
Spindle travel
125 mm
Spindle rotation
Dx - Sx
Quill
Ø 75 mm
Column
Ø 125 mm
Distance between spindle axis and column
320 mm
Distance between spindle nose and table
80 ÷ 680 mm
Distance between spindle nose and base
1140 mm
Table dimensions
500 x 380 mm
Slot
14 mm
Tilting table
±90°
Vice
125 mm
Base dimensions
460 x 650 mm
Motor
400 V 50 Hz 1,1/1,5 kW
Dimensions
500 x 750 x 2000 mm
Net weight
350 kg
Packaging dimensions
800x570x2090 h mm
Gross weight
367,00 kg
EAN Code
8012667243913
