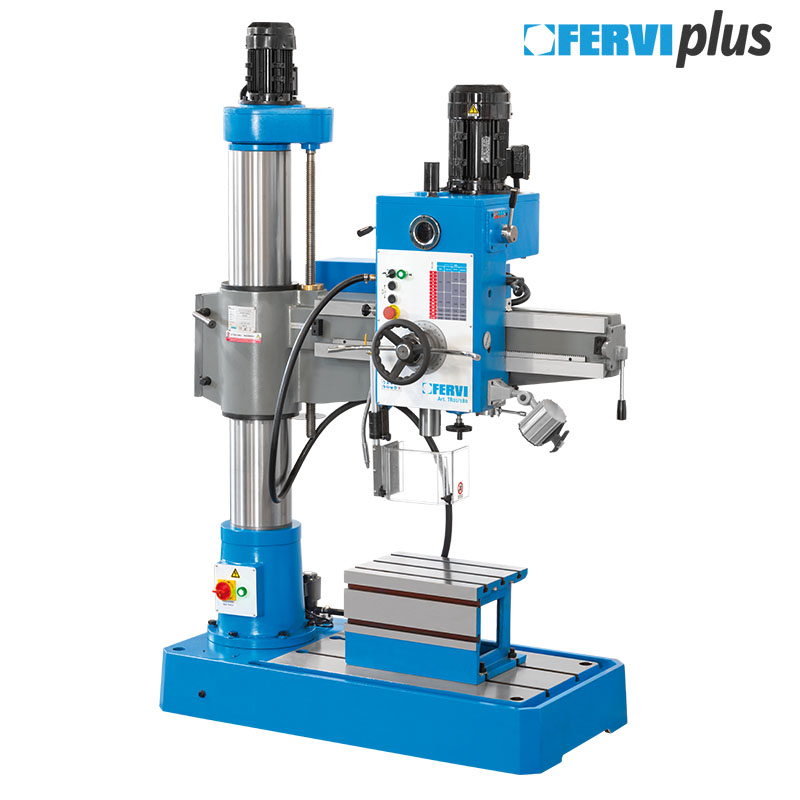

RADIAL DRILLING MACHINE
Art. TR01/180
REVERSIBLE, WITH AUTOMATIC FEEDING, COOLANT SYSTEM, EQUIPPED WITH LED LIGHT. WITH GEAR SPEED CHANGE.
Max drilling capacity on cast iron with pre-drilling hole
40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
32 mm
Continuous drilling capacity
28 mm
Chuck sizes
3 ÷ 16 mm B16
Spindle speed
(6) 75 ÷ 1220 rpm
Distance between spindle axis and column
350 ÷ 870 mm
Distance between spindle nose and table
0 ÷ 640 mm
Distance between spindle nose and base
310 ÷ 980 mm
Feed range
(3) 0,1 – 0,16 - 0,25 mm/rev
Cube dimensions
550 x 390 x 350 mm
Base dimensions
1300 x 650 mm
Lifting motor radial arm
400V 50 Hz 0,55 kW
Cooling pump
400V 50 Hz 0,40 kW
Dimensions
1400 x 650 x 1900 h mm
Packaging dimensions
1550x750x2100 h mm
Included in the price
- Drill chuck with key 3 ÷ 16 mm B16
- Spindle drilled MT 4 B16
- Reduction sleeve MT 4/3
- LED Lamp
- Coolant system
- Base cube
