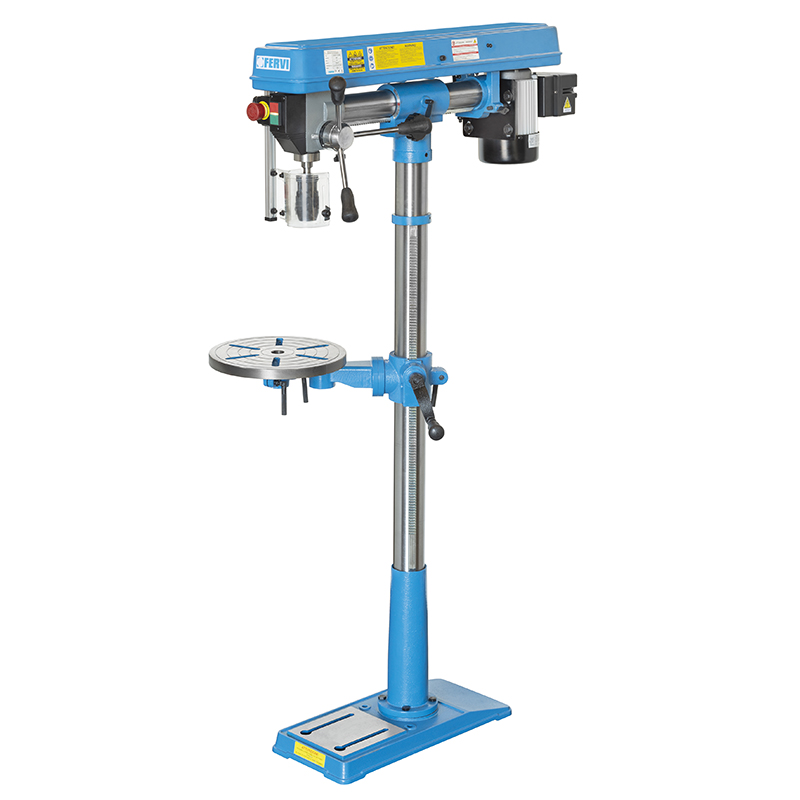

RADIAL FLOOR DRILL PRESS WITH DRIVE BELT
Art. 0857
ROTATING AND TILTING TABLE WITH DOUBLE ARM, TILTING HEAD, ELECTRICAL SYSTEM WITH SEPARATE 24V CIRCUIT FOR ON-BOARD MACHINE CONTROLS.
Max drilling capacity on cast iron with pre-drilling hole
Ø 20 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 16 mm
Continuous drilling capacity
Ø 12 mm
Chuck sizes
1 - 16 mm B16
Spindle speed
(12) 300 ÷ 2550 rpm
Head tilt left and right
90º L ; 45º R
Distance chuck-column
375 mm
Distance between spindle nose and base
1290 mm
Table dimensions
ø 290 mm
Motor
230 V 50 Hz 0,375 kW
Dimensions
950 x 300 x 1600 mm
Packaging dimensions
1400 x 505 x 260 h mm
Included in the price
- Keyless chuck ø16 mm B16
- Chuck mount MT 2
