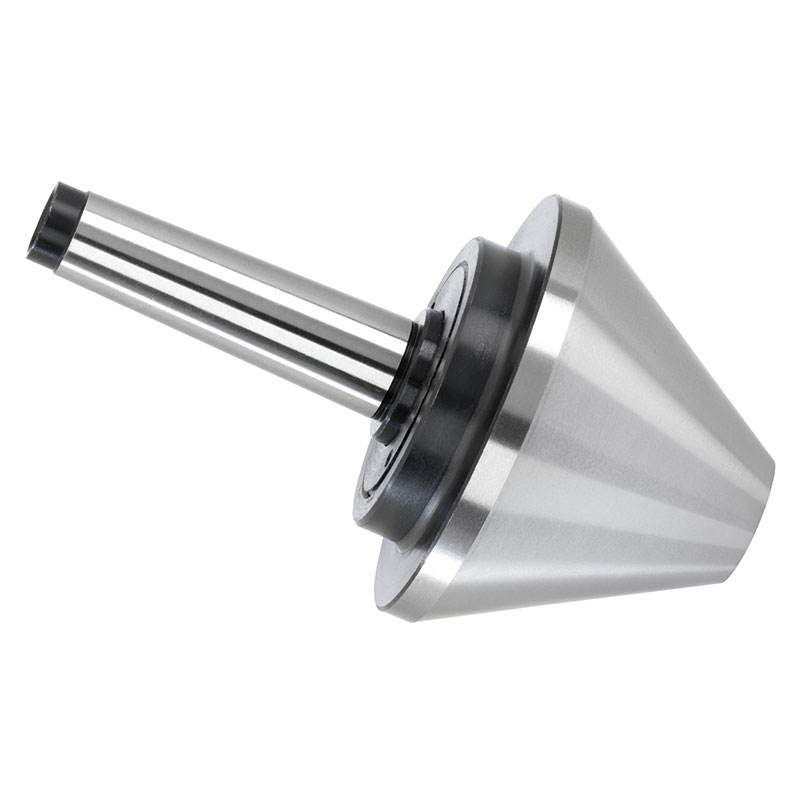

TUBE ROTARY LIVE CENTER
Art. C055/3
FOR TURNING AND GRINDING OF PIPES AND HOLLOW BODIES.
| Spindle taper |
ø |
Length |
rpm max |
Maximum capacity |
Gross weight |
Packaging dimensions |
EAN Code |
| 3 |
60° - 30 ÷ 100 mm |
170 mm |
2500 g/min |
200 kg |
3,51 kg |
115x115x230 h mm |
8012667262679 |
| 4 |
60° - 40 ÷ 160 mm |
230 mm |
1600 g/min |
350 kg |
10,48 kg |
350xx325x270 h mm |
8012667262686 |
| 5 |
60° - 66 ÷ 200 mm |
290 mm |
1500 g/min |
350 kg |
20,71 kg |
360x310x270 h mm |
8012667262693 |
