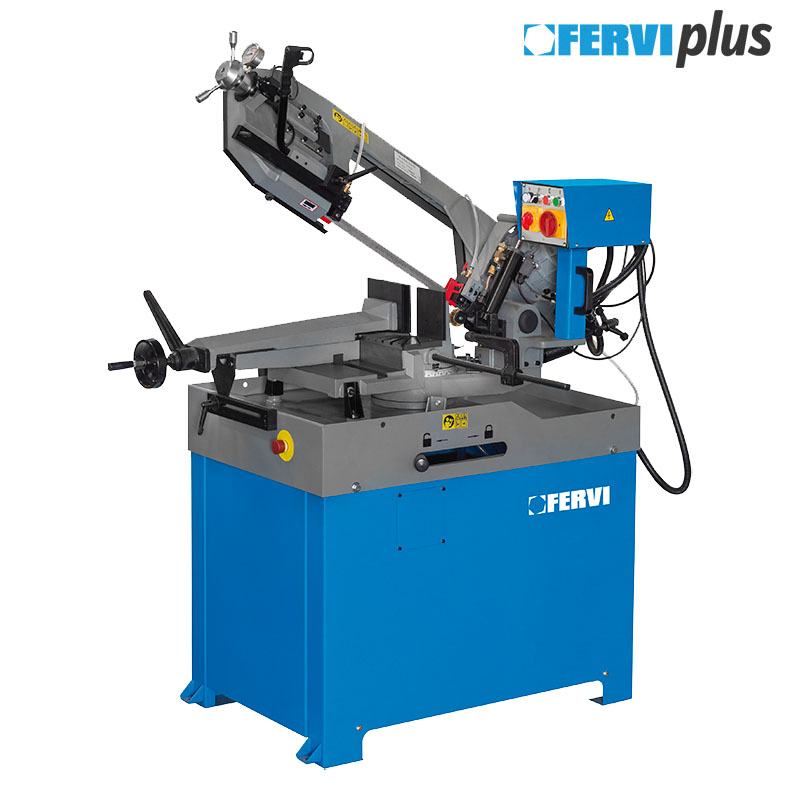

METAL BAND SAW WITH MANUAL AND HYDRAULIC FEED

news
Art. 0230
WITH BLADE TENSION REGULATION TOOL, COOLANT SYSTEM, QUICK VICE.
Where to buy
add to favorites
Blade dimensions
2715 x 27 x 0,9 mm
Motor
400V 50 Hz 0.75 / 1,5 kW
Cutting speed
36 - 72 m/min
Cutting angle
-45° ÷ 60°
Cutting depth at 90°
● 250 mm ■ 240 mm ▬ 310 x 240mm
Cutting depth at 45°
● 200 mm ■ 170 mm ▬ 190 x 170mm
Jaws
145 x 120h mm
Lateral stroke
380 mm
Vice opening
306 mm g
Dimensions
1500 x 670 x 1520 mm
Net weight
332 Kg
Gross weight
394,00 kg
EAN Code
8012667406271
Packaging dimensions
1550 x 760 x 1335 h mm

Included in the price
  • Blade tension gauge
  • Coolant pump
  • Quick vice
