ELECTRIC TAPPING MACHINE
news
Art. M037/16

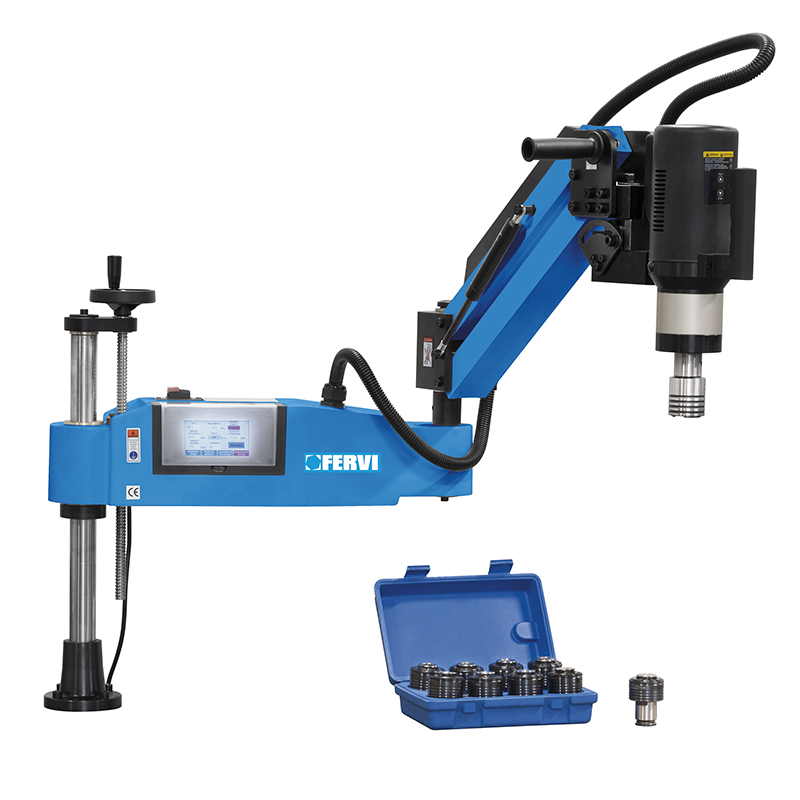

ARTICULATED ARM WITH 2 JOINTS FOR QUICK AND PRECISE POSITIONING OF THE TAPPING TOOL. THE HEAD IS TILTABLE AND THE SPINDLE SPEED IS VARIABLE, ADAPTING TO DIFFERENT MACHINING NEEDS. EQUIPPED WITH ADVANCED SOFTWARE FOR AUTOMATIC MANAGEMENT OF CUTTING PARAMETERS.
Inch threads
1/8" - 7/16"
Head tilt left and right
0° - 90°
Range of action
Min. 330 mm - Max. 1045 mm
Base locating slot
4 x 90° - Ø100 mm
Variable spindle speed
0 - 312 rpm
Motor
230V 50/60 Hz 0.6kW
The electric tapping machine is ideal for use in machine shops, metal component factories, repair and maintenance workshops, where precise and reliable threading is required. Thanks to the arm made of 2 joints, quick and safe positioning of the tapping tool is possible. The tapping head can be tilted, allowing threading operations even in angled positions, thus increasing flexibility of use. The spindle speed is variable, allowing the speed to be adapted to the specific requirements of the material and type of threading to be performed. The machine is equipped with software for automatic management of cutting parameters based on thread size and depth.It is also possible to tighten screws thanks to the specific function and the ability to adjust the tightening torque.
Included in the price
- M3- M16 tap holder sockets
- Service Keys
