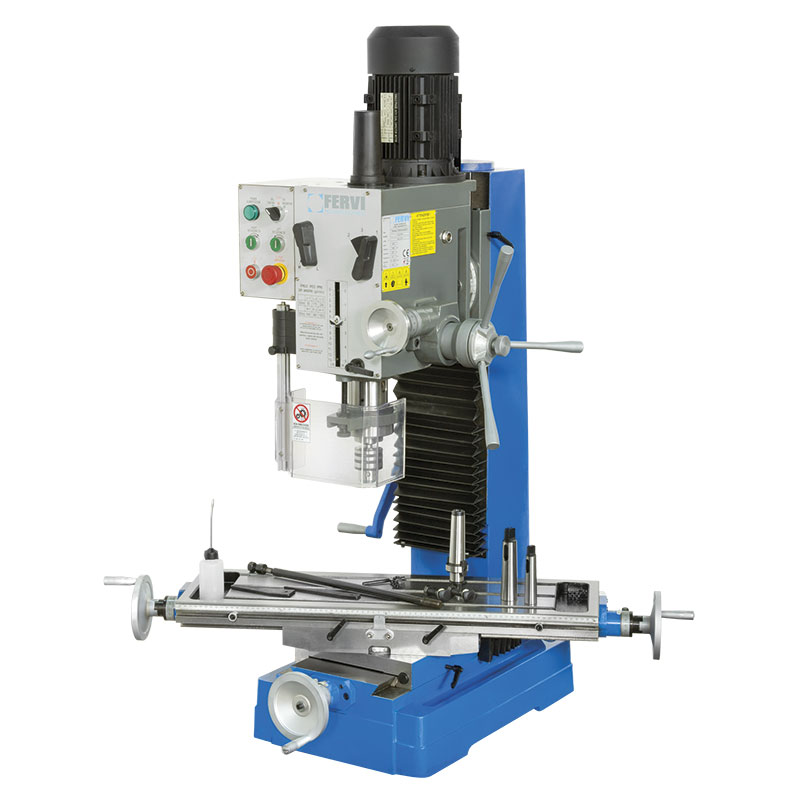

GEARED DRILLING MILLING MACHINE

Art. T044/230V
SQUARE COLUMN AND DOVETAIL GUIDES, TIMED REVERSING, TAPPING.
Max drilling capacity on cast iron with pre-drilling hole
ø 40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
ø 45 mm
Face milling cutter max
ø 80 mm
End milling capacity
ø 32 mm
Tapping capacity
ø 22 mm
Spindle taper
CM 4
Chuck sizes
1 - 13 mm B16
Spindle speed
(6) 95 ÷ 1600 rpm
Spindle travel
120 mm
Spindle rotation
Dx - Sx
Quill
ø 75 mm
Head tilt left and right
± 60º
Manual vertical feed division
0,02 mm
Distance spindle axis - column surface
240 mm
Max distance spindle nose - table
460 mm
Table dimensions
800 x 240 mm
Slot
14 mm
Longitudinal axis
560 mm
Cross axis
190 mm
Base dimensions
405 x 630 mm
Motor
230 V 50 Hz 1,5 kW
Net weight
300 kg
Packaging dimensions
850x760x1160 h mm
Gross weight
322,50 kg
EAN Code
8012667203542
