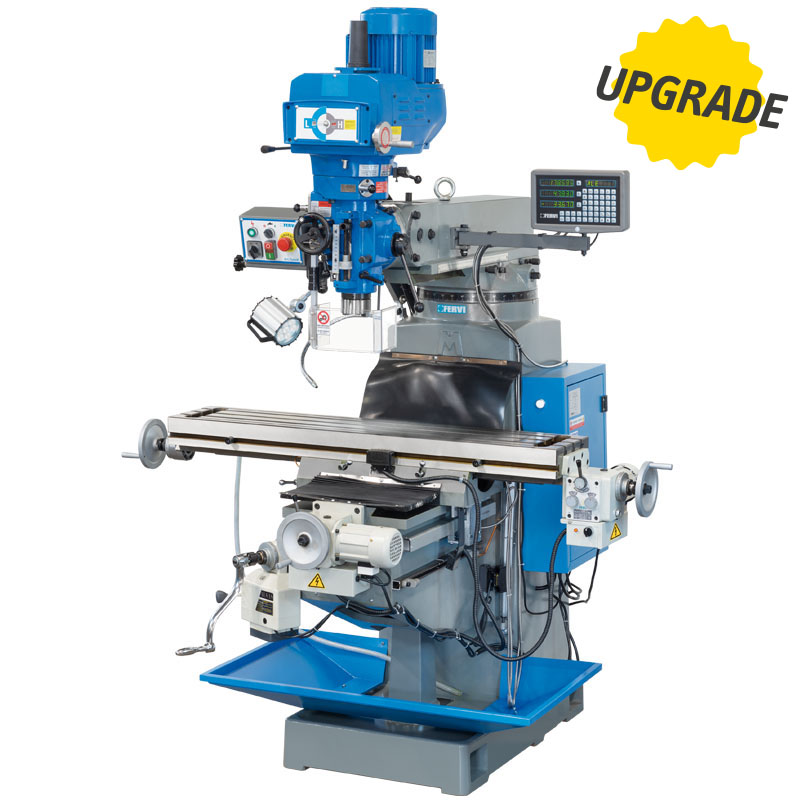

VERTICAL MILLING MACHINE WITH MECHANICAL SPEED VARIATOR
Art. F060V
VARIABLE SPEED, ISO 40, WITH AUTOMATIC DOWN FEED, MOTORIZED CROSS TABLE ON ALL AXES, 3 AXIS READ OUT.
Face milling cutter max
100 mm
End milling cutter max
35 mm
Max drilling capacity on cast iron with pre-drilling hole
60 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
24 mm
Spindle taper
ISO 40 - DIN 2080
Head tilt left and right
± 45°
Vertical head rotation
± 90°
Head body rotation
± 180°
Vertical spindle speeds
(2) 60 ÷ 500 | 500 ÷ 3600 rpm
Motor
400 V 50 Hz 2.25 kW
Table movement motor
(X,Y ) 400V 50 Hz 180 W (Z) 400V 50 Hz 100W
Cooling pump
400V 50 Hz 90 W
Feed range
(3) 0.04 - 0.08 - 0.15 mm/rev
Surface speed
(X,Y) 42 - 76 - 164 - 262 mm/min (Z) 0 ÷ 457 mm/min
Distance between spindle nose and table
45 - 395 mm
Distance spindle axis - column surface
215-450 mm
Table dimensions
1246 x 230 mm
Dimensions
1680 x 1500 x 2100 h mm
Packaging dimensions
1720x1550x2400 h mm
Included in the price
- Base with chip tray
- Coolant system
- LED Lamp
- Mechanical speed indicator
- 3 Axis DRO
- Variable speed motorized axes with rapid function
- Round table flyers with neutral function
- Guide lubrication system with manual pump
