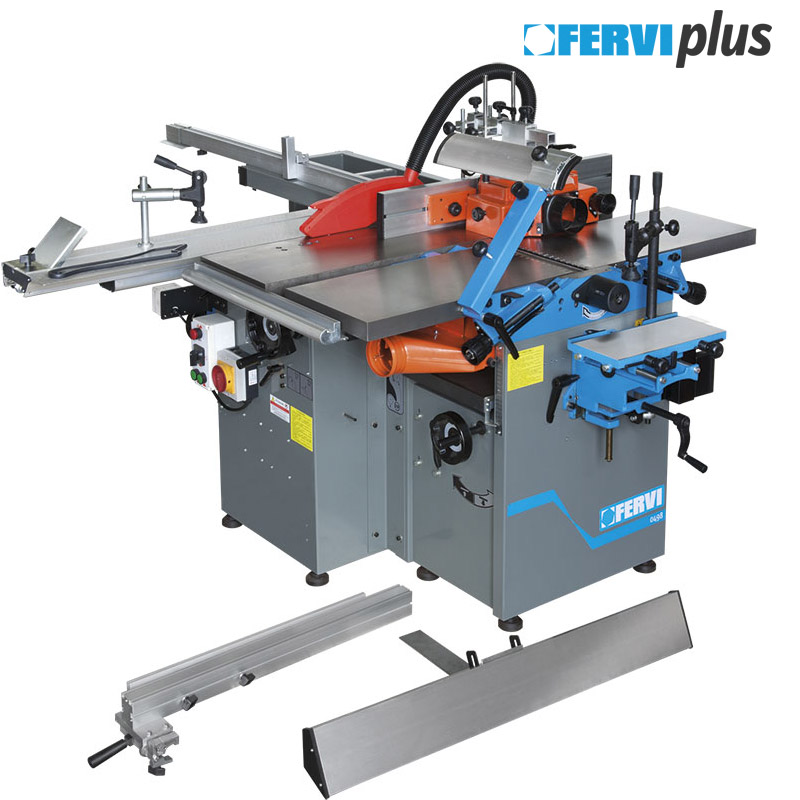

8 FUNCTIONS COMBINE MACHINE

Art. 0498
BENCH SAW, SLIDING CARRIAGE, SCORING BLADE, SPINDLE MOULDER, SURFACE PLANNER, THICHNESS PLANNER, MORTISING UNIT AND SANDING DRUM AT 1500RPM.
Tables height
840 mm
Overall dimensions
1880 x 1500 x 1050 mm
BENCH SAW
-
Main table dimensions
1045 x 800 mm
Blade dimensions
254 x 3,2 x 30 mm 24 Z
Plate Dimensions
1285 x 310 mm
Blade speed
4050 rpm
Cut height
65 mm 90° - 45 mm 45°
SLIDING CARRIAGE
-
Max cutting length with saw bench
1370 mm
Sliding table
1500 x 840 mm
SCORING BLADE
-
Blade speed
6300 rpm
PLANER THICKNESSER
-
Plate Dimensions
1285 x 310 mm
Arbor size
ø 75 mm
Inlet size
ø 100 mm
Blade dimensions
ø 80 x 3,2 x 20 mm 8 Z
Knives
3
Planer capacity
310 x 5 mm
Thickness capacity
310 x 180 mm
MORTISER
-
Cutter arbor speed
4000 rpm
Vertical stroke
0 ÷ 80 mm
Longitudinal travel
0 ÷ 85 mm
Cross travel
0 ÷ 140 mm
Cutter arbor speed
4000 rpm
SPINDLE MOULDER
-
Arbor size
ø 30 mm
Spindle travel
130 mm
Cutter arbor speed
1500 / 4000 / 6000 rpm
SANDING DRUM
-
Dimensions
ø 100 x 100h mm
Spindle speed
1500 rpm
Motor
3 x 230 V 50 Hz 2.2 kW
Net weight
445 kg
Gross weight
549,00 kg
EAN Code
8012667276850
Packaging dimensions
1580x1280x1000h
