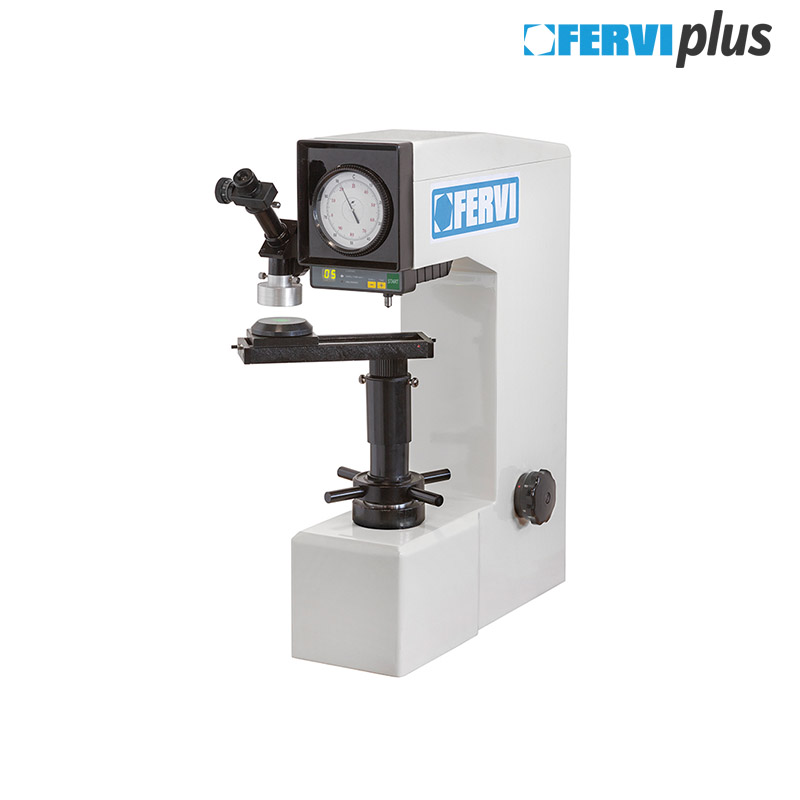

HARDNESS TESTING MACHINE

Art. D018
MOTORIZED, ROCKWELL, BRINELL AND VICKERS.
Wooden Box
Test force
294,2 N / 306,5 N / 588,4 N / 612,9 N / 980,7 N / 1471 N / 1839 N; 30 kgf / 31,25 kgf / 60 kgf / 62,5 kgf / 100 kgf / 150 kgf / 187,5 kgf
Diamond cone and pyramid penetrators
n° 1+1
Steel ball penetrators
n° 3
Flat anvils
n° 2
V - anvil
n° 1
Hardness test blocks
n° 2 Brinell; n° 2 Rockwell; n° 1 Vickers
Magnification
37,5x - 75x
Max Height of tested piece
Rockwell: 175 mm; Brinell - Vickers: 145 mm
Throat depth
160 mm
Power
230 V - 50 / 60 Hz - 6 W
Durometer dimensions
525 x 240 x 730h mm
MEASURE UNITS:
-
HBS
4 - 450
HRB
20 - 100
HRA
20 - 88
HRC
20 - 70
HV
200 - 1000
Net weight
70 kg
Packaging dimensions
650x420x820 h mm
Gross weight
76,00 kg
EAN Code
8012667244880
