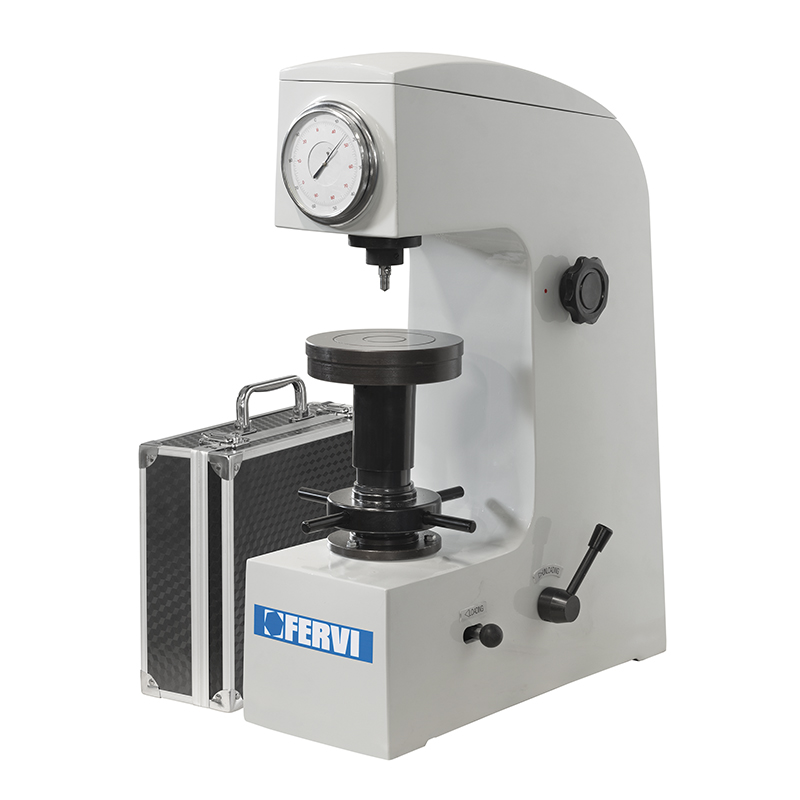

ROCKWELL HARDNESS TESTING MACHINE

Art. D001
Wooden Box
Reading
0,5 HR g
Diamond and still ball penetrators
n° 1+1
Flat anvils
n° 2
V - anvil
n° 1
Hardness test blocks
n° 5 (HRC, 3xHRB, HRA)
Max Height of tested piece
170 mm
Throat depth
125 mm
Durometer dimensions
185 x 465 x 640 mm
Test force
588,4 N / 980,7 / 1471 N (60 kgf / 100 kgf / 150 kgf)
MEASURE UNITS:
-
HRC
20 ÷ 70
HRB
25 ÷ 100
HRA
20 ÷ 88
Net weight
90 kg
Gross weight
92,00 kg
EAN Code
8012667113223
