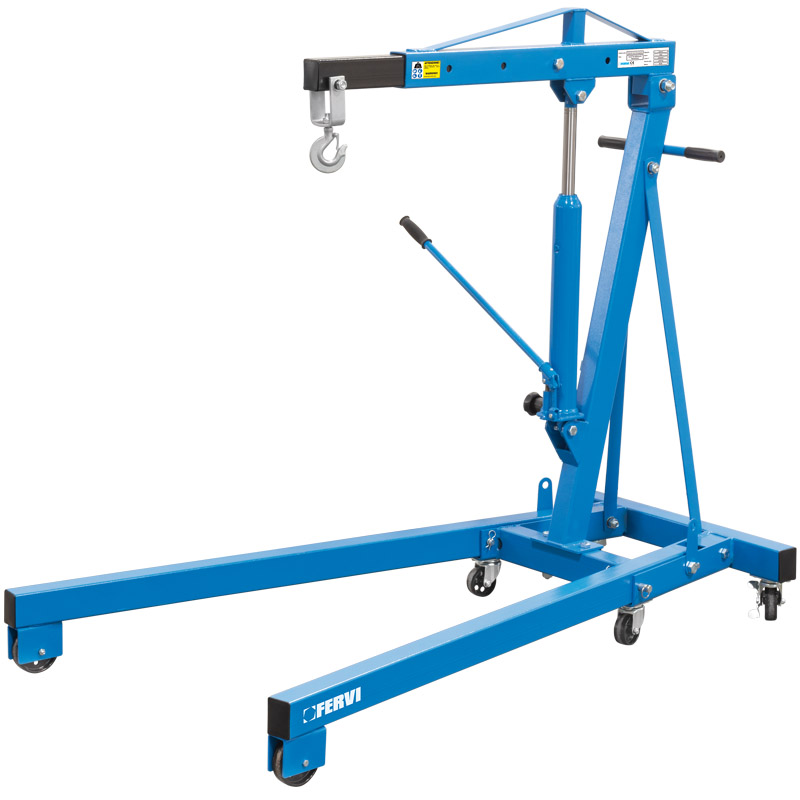

HYDRAULIC FOLDING CRANE
Art. 0021/2
WITH TWO PIVOTING WHEELS WITH BRAKES, CAST IRON WHEELS. LOWERING SYSTEM AND PUMPING LEVER ARRANGED LATERALLY. THE ABILITY TO FOLD THE LEGS WHEN NOT IN USE ALLOWS IT TO BE STORED IN CONFINED SPACES.
Dimensions
1730 x 1025 x 1400h mm
Fold dimensions
760 x 760 x 1635h mm
Min/max reach
750÷ 1280 mm
Hook heights with raised arm
1870 mm @ 2000 kg | 2280 mm @ 500 kg
Hook heights with lowered arm
0 mm @ 500 kg | 430 mm @ 2000 kg
Packaging dimensions
1570x540x290 h mm
