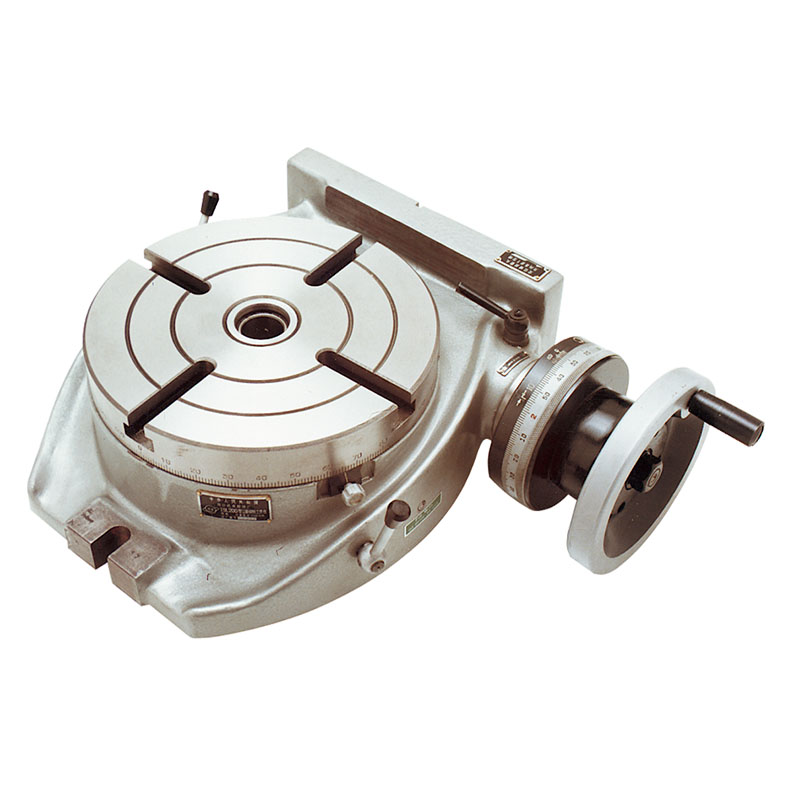

TAVOLA A DIVIDERE ORIZZONTALE VERTICALE
DOTATA DI REGOLAZIONE MICROMETRICA ED INGRANAGGI A BAGNO D’OLIO.
| A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
N |
P |
Q |
CM |
Rapporto |
Cave |
Portata max orizzontale |
Portata max verticale |
Peso netto |
Dimensioni imballo |
Peso lordo |
Codice EAN |
| 12 mm |
186 mm |
125 mm |
160 mm |
242 mm |
196 mm |
12 mm |
85 mm |
12 mm |
194 mm |
82 mm |
37 mm |
125 mm |
2 |
1:90 |
4/10 N° / mm |
100 kg |
50 kg |
23 kg |
430x430x220 h mm |
31,00 kg |
8012667180287 |
| 14 mm |
208 mm |
150 mm |
200 mm |
285 mm |
236 mm |
14 mm |
100 mm |
15 mm |
211 mm |
99 mm |
48 mm |
125 mm |
3 |
1:90 |
4/12 N° / mm |
150 kg |
75 kg |
30 kg |
440 x 450 x 210 h mm |
40,00 kg |
8012667003098 |
| 14 mm |
253 mm |
170 mm |
250 mm |
328 mm |
286 mm |
14 mm |
110 mm |
16 mm |
241 mm |
106 mm |
48 mm |
125 mm |
4 |
1:90 |
6/12 N° / mm |
200 kg |
100 kg |
44 kg |
505x455x240 h mm |
54,50 kg |
8012667003104 |
| 18 mm |
321 mm |
210 mm |
320 mm |
410 mm |
360 mm |
18 mm |
120 mm |
16 mm |
273 mm |
118 mm |
48 mm |
125 mm |
4 |
1:90 |
6/14 N° / mm |
250 kg |
125 kg |
75 kg |
580x575x250 h mm |
92,00 kg |
8012667003111 |
| 18 mm |
400 mm |
260 mm |
400 mm |
525 mm |
450 mm |
18 mm |
150 mm |
16 mm |
337 mm |
145 mm |
70 mm |
160 mm |
4 |
1:90 |
6/14 N° / mm |
300 kg |
150 kg |
174 kg |
750x685x275 h mm |
174,00 kg |
8012667180294 |
