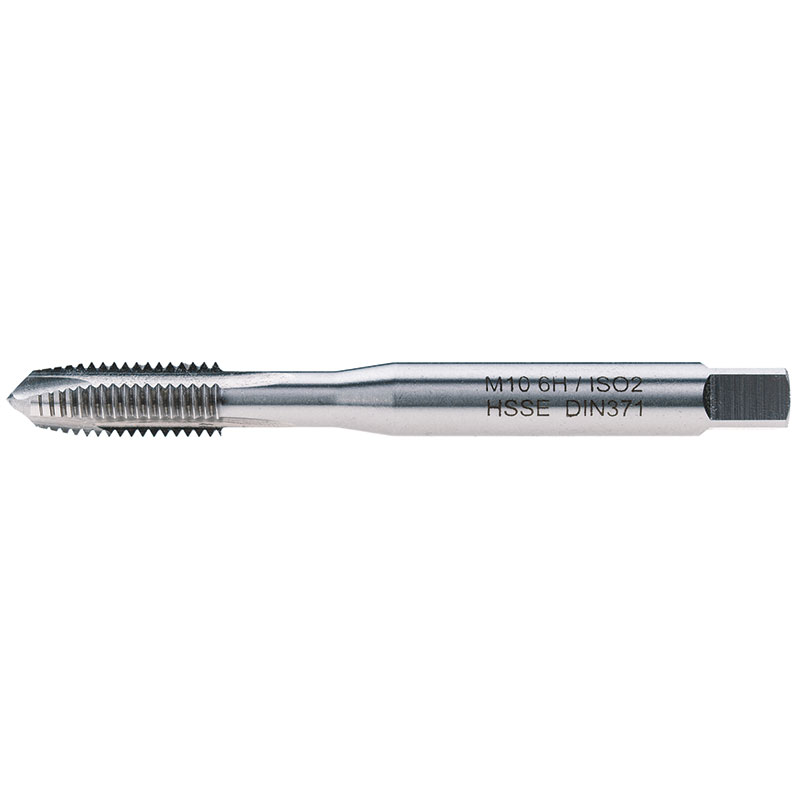

MACHINE TAPS STRAIGHT FLUTE, SPIRAL POINTED FOR THROUGH HOLES
Art. M001/3
ISOMETRIC THREAD COARSE PITCH - REINFORCED SHANK.
| B |
L2 |
L1 |
D2 |
C |
Gross weight |
Packaging dimensions |
EAN Code |
| M3 x 0,50 mm |
13 mm |
56 mm |
3.5 mm |
2.7 mm |
0,05 kg |
58x12x12 h mm |
8012667181444 |
| M4 x 0,70 mm |
13 mm |
66 mm |
4.5 mm |
3.4 mm |
0,09 kg |
11x11x66 h mm |
8012667141561 |
| M5 x 0,80 mm |
16 mm |
70 mm |
6 mm |
4.9 mm |
0,02 kg |
74x12x12 h mm |
8012667141578 |
| M6 x 1 mm |
22 mm |
85 mm |
6 mm |
4.9 mm |
0,02 kg |
85x17x17 h mm |
8012667141585 |
| M8 x 1,25 mm |
22 mm |
90 mm |
8 mm |
6.2 mm |
0,03 kg |
90x15x15 h mm |
8012667141592 |
| M10 x 1,5 mm |
24 mm |
100 mm |
10 mm |
8 mm |
0,05 kg |
100x18x18 h mm |
8012667141554 |
