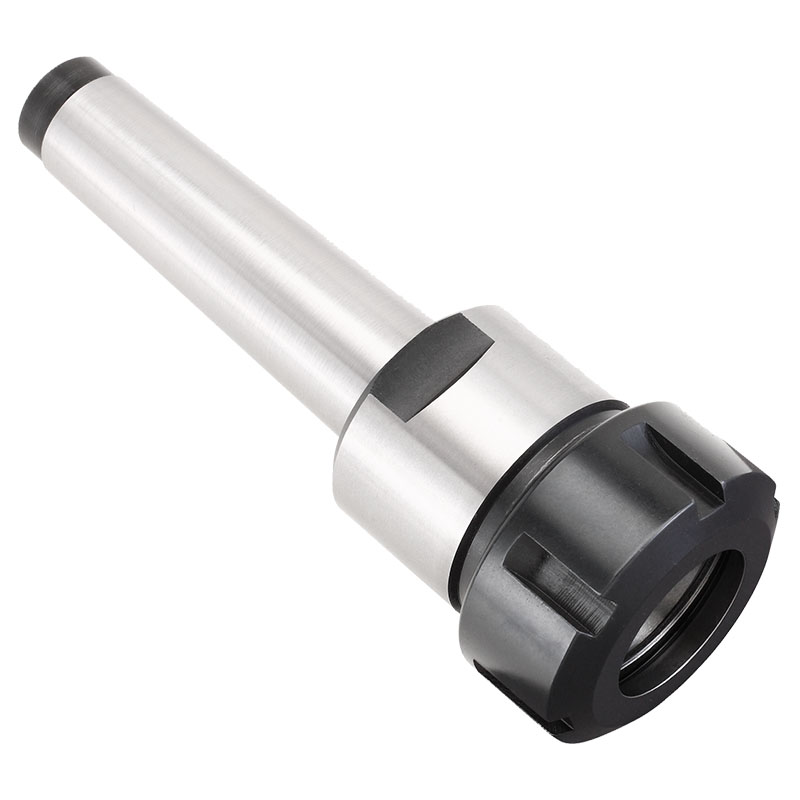

COLLET CHUCK
Art. 3/CM3
DIN 228/A, FOR MOUNTING TOOLS WITH CYLINDRICAL SHANK ON DIN 6499 (ER) COLLETS. SUPPLIED WITH LOCKING FERRULE.
Collets |
D |
L |
L1 |
F |
A |
Gross weight |
Packaging dimensions |
EAN Code |
ER 32 |
50 mm |
135 mm |
60 mm |
M 10 |
3 / 20 mm |
0,49 kg |
60x60x145 h mm |
8012667140151 |
ER 32 |
50 mm |
146 mm |
60 mm |
M 12 |
3 / 20 mm |
0,63 kg |
57x57x150 h mm |
8012667140168 |
ER 32 |
50 mm |
166 mm |
58 mm |
M 16 |
3 / 20 mm |
0,84 kg |
56x56x170 h mm |
8012667187569 |
