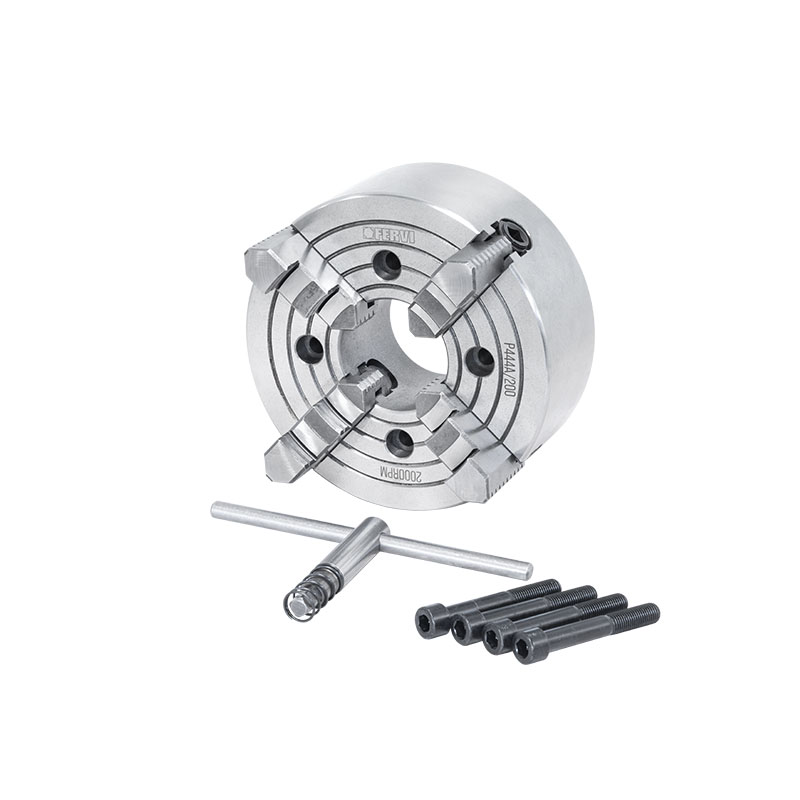

4 JAW INDEPENDENT CHUCK

news
Art. P444A/200
WITH SCREW CONTROL, FLANGE CONNECTION, REVERSIBLE SIMPLE GUIDE JAWS FOR INTERNAL AND EXTERNAL GRIPPING. EQUIPPED WITH JAW KEY AND FIXING SCREWS.
Where to buy
add to favorites
Box
Wooden Box
Cast Iron
Lathe
D D1 D2 D3 H1 H h z-d Spanner square Net weight Gross weight EAN Code Packaging dimensions
125 mm 95 mm 108 mm 30 mm 78 mm 56 mm 6 mm 4-M8 mm 7 mm 4,8kg 5,10 kg 8012667398194 175x175x160 h mm
160 mm 65 mm 95 mm 55 mm 103 mm 75 mm 5 mm 4-M10 mm 10 mm 10 kg 10,50 kg 8012667398200 210x210x195 h mm
200 mm 80 mm 112 mm 70 mm 119 mm 80 mm 6 mm 4-M10 mm 10 mm 14,5 kg 15,20 kg 8012667398217 265x265x210 h mm
250 mm 110 mm 130 mm 100 mm 131 mm 90 mm 6 mm 4-M12 mm 12 mm 23 kg 24,00 kg 8012667398224 310x310x220 h mm
320 mm 140 mm 165 mm 115 mm 152 mm 102 mm 16 mm 4-M16 mm 14 mm 43 kg 44,50 kg 8012667398231 390x420x200 h mm
400 mm 160 mm 185 mm 125 mm 157 mm 110 mm 13 mm 4-M16 mm 14 mm 71 kg 79,00 kg 8012667398248 400x490x210 h mm
Art. €
P444A/125 192,00
P444A/160 244,00
P444A/200 322,00
P444A/250 410,00
P444A/320 689,00
P444A/400 919,00
