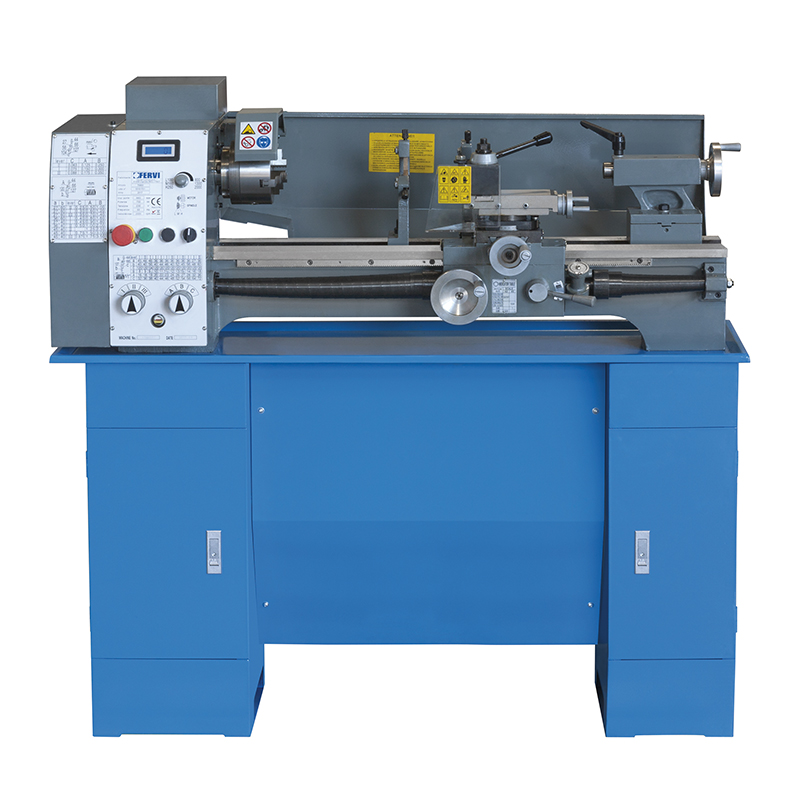

BENCH LATHE WITH VARIABLE SPEED INVERTER
Art. T660I
SEMI NORTON GEAR BOX, PARTIALLY ASSEMBLED BENCH.
Max swing over the bed
280 mm
Max swing over the cross slide
165 mm
Max length of workpiece
660 mm
Variable spindle speed
100 ÷ 2000 rpm
Longitudinal feeds
0,063 ÷ 0,35 mm/rev
Metric threads
0,25 ÷ 3,5 mm
Motor
230 V 50/60 Hz 0.75 kW
Dimensions
1325 x 550 x 1230 mm
Packaging dimensions
1360 x 660 x 1090 h mm
Included in the price
- 3+3 self centering chuck ø 125 mm
- 4 Reversible indipendent jaw chuck Ø 160 mm
- Face plate ø 200 mm
- Flange for 4-jaw chuck Ø 160 mm
- Follow rest
- Steady rest
- Dead center MT 2
- Dead center MT 4
- Live center MT 2
- Thread dial
- Leadscrew hood
- Turret safeguard
- Chuck safeguard
- Splash guard
- T0AA quick change tool post
