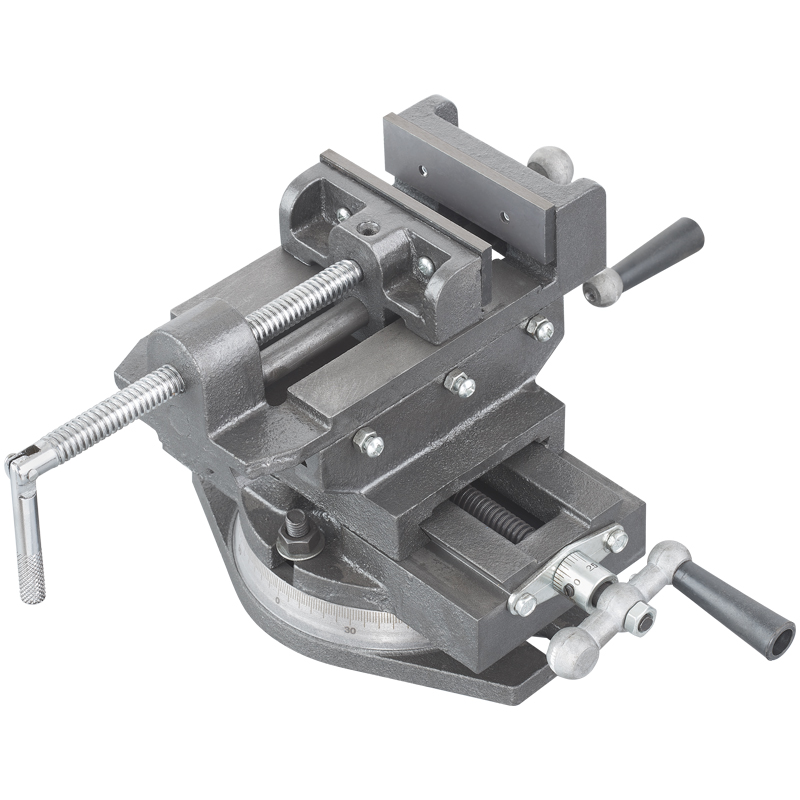

2 - WAY CROSS VICE WITH SWIVEL BASE
Art. 0188/125G
USEFUL FOR PERFORMING PRECISION DRILLING OR TAPPING OPERATIONS THANKS TO THE LONGITUDINAL AND LATERAL MOVEMENT WITHOUT REMOVING THE PIECE FROM THE VICE. EQUIPPED WITH A SWIVEL BASE.
| Jaws |
Opening |
Base dimensions |
Height |
Longitudinal travel |
Cross travel |
Slot |
Net weight |
Packaging dimensions |
Gross weight |
EAN Code |
| 100 X 25 mm |
90 mm |
210 x 150 mm |
175 mm |
130 mm |
110 mm |
18mm |
11,5 kg |
280x280x200 h mm |
11,99 kg |
8012667289423 |
| 125 X 40 mm |
120 mm |
230 x 175 mm |
180 mm |
150 mm |
120 mm |
20mm |
14,5 kg |
290x290x200 h mm |
15,21 kg |
8012667345846 |
| 150 X 45 mm |
150 mm |
235 x 195 mm |
190 mm |
170 mm |
115 mm |
20mm |
19,5 kg |
330x330x240 h mm |
20,08 kg |
8012667345853 |
