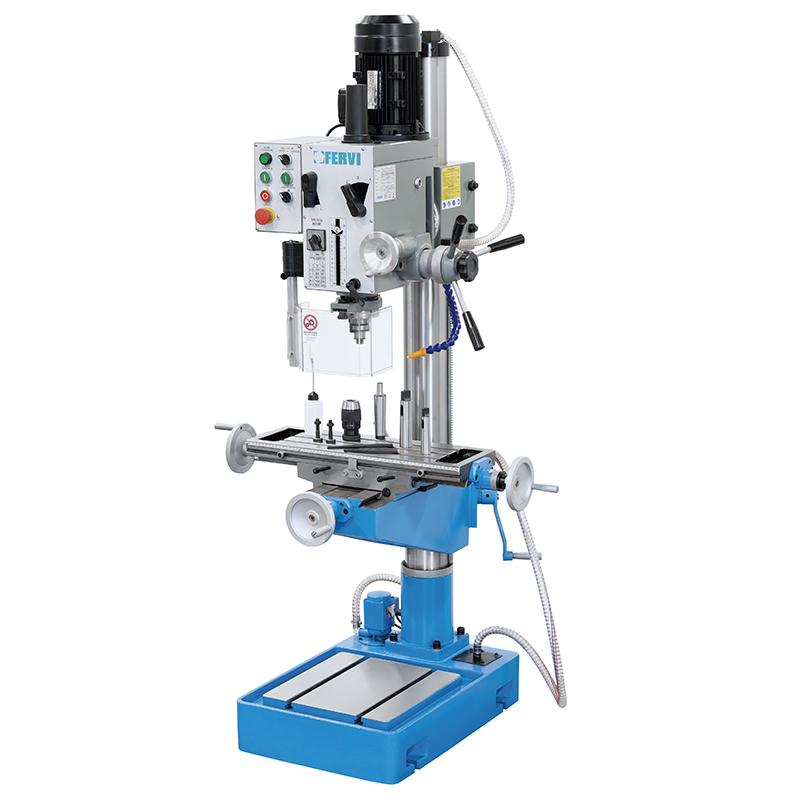

GEARED MILLING DRILLING MACHINE

Art. T047/400V
REVERSIBLE WITH COOLANT SYSTEM AND TEMPORISED TAPPING.
Max drilling capacity on cast iron with pre-drilling hole
Ø 40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 32 mm
Face milling cutter max
Ø 80 mm
End milling capacity
Ø 25 mm
Tapping capacity
Ø 22 mm
Spindle taper
CM 4
Spindle speed
(12) 75 ÷ 3200 rpm
Spindle travel
130 mm
Spindle rotation
Dx - Sx
Quill
Ø 76 mm
Column
Ø 115 mm
Head tilt left and right
± 60°
Manual vertical feed division
0.02 mm
Distance spindle axis - column surface
260 mm
Distance between spindle nose and table
715 mm
Table dimensions
585 x 190 mm
Table slots
12 mm
Longitudinal axis
360 mm
Cross axis
250 mm
Base dimensions
648 x 412 mm
Base slot
14 mm
Motor
400 V 50 Hz 1,1 - 1,5 kW
Cooling pump
400v 50 Hz 0.4 KW
Overall sizes
740 x 790 x 1960h mm
Net weight
355 kg
Packaging dimensions
830x760x1870 h mm
Gross weight
381,50 kg
EAN Code
8012667199548

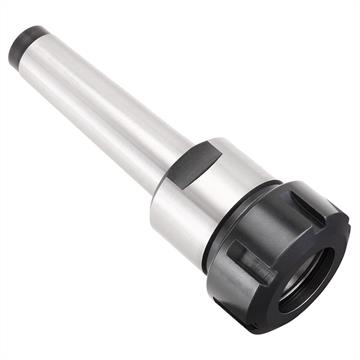

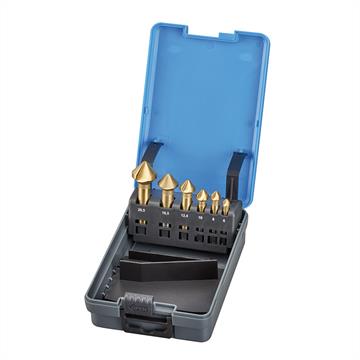

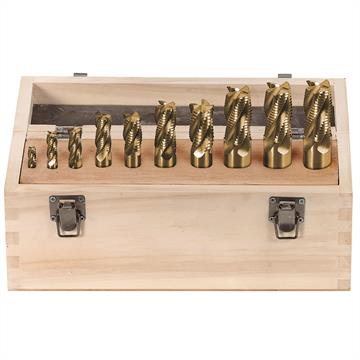

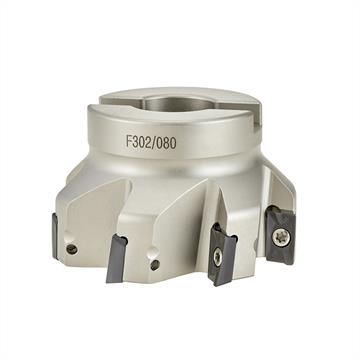

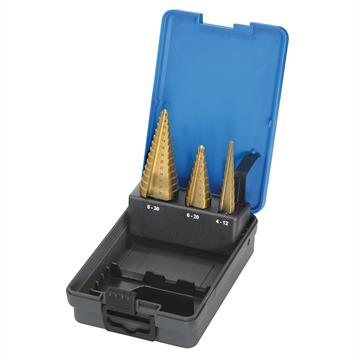

Suitable with
